JVC LT-40FN97 NO Picture or Backlight
Post new topic   Reply to topic    Riddled TV Repair Forum Index -> TV Repair

Author Message
Bftiedt



Joined: 30 Jun 2012
Posts: 2
Location: Nashville

PostPosted: Sat Jun 30, 2012 1:19 pm    Post subject: JVC LT-40FN97 NO Picture or Backlight Reply with quote

Hey Guys this morning I ran across a JVC 40 inch at a yard sale. The guy said it powered on (which it does) but didn't have a picture. He got it out of a storage unit he bought. He said I could have it for $5 lol. So I went ahead and bought it hoping I could fix it. I'm not a TV guy but I do mess with electronics somewhat ( cable boxes , modems, Xbox) so I'm not a complete idiot when it could to electronics.

Anyways the TV powers up , you can hear it click when the power button is pressed , but I get no picture or backlight from the LCD.

Could someone point mein the right direction as to what it could be or what I should check? I know my description is quite vague but I'm hoping someone can help.

Thanks,
Brandon
Google

PostPost subject: Advertisement

JTS1957



Joined: 21 Jan 2009
Posts: 2325
Location: Far, Far Away

PostPosted: Sat Jun 30, 2012 6:00 pm    Post subject: Reply with quote

Any sound? (Intelligent audio with the appropriate input connected/selected)?
Any "flashing" LEDs?
Bftiedt



Joined: 30 Jun 2012
Posts: 2
Location: Nashville

PostPosted: Sat Jun 30, 2012 7:40 pm    Post subject: Reply with quote

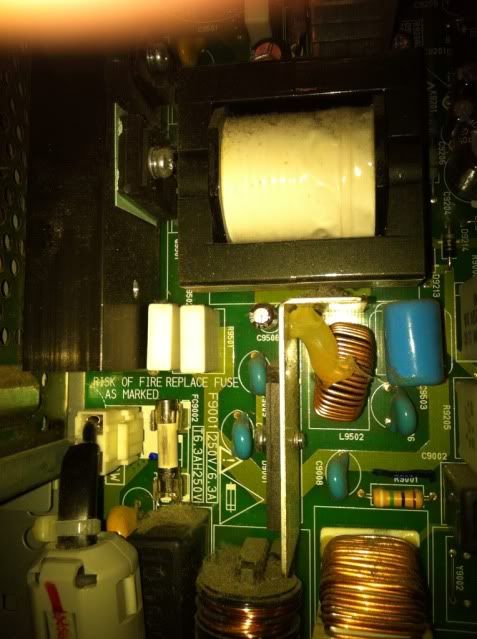

I have no sound..there is a glass fuse right next to the power cord.. I checked it with my test light and have power on both sides..

Here is what what I checked


JTS1957



Joined: 21 Jan 2009
Posts: 2325
Location: Far, Far Away

PostPosted: Sat Jun 30, 2012 8:51 pm    Post subject: Reply with quote

Presuming NO LED flashing ...

<SUB>
MODE DC (V) PIN NO.
IC9001
1 129.5
2 NC
3 0
4 19.5
5 0
6 1.3
7 1.2
IC9051
1 12.8
2 0
3 2.4
